How To Use xdcpay-connect to Create a dApp Connected to XDC network

Using xdcpay-connect to create a dApp connected to XDC network.

🧭 Table of contents

📰 Overview

Web3Modal is a single Web3 / Ethereum provider solution for all wallets. The Web3Modal process for developing a new decentralized app is relatively straight-forward and documentation on how to use it is widely available. You will be using React to bootstrap a new app and use Web3Modal and Web3.js to intereact with the blockchain.

📰 What you will learn

In this tutorial, you will learn how to integrate XDCPay with a front-end application so that the application can interact with the XDC Network Mainnet and XDC Apothem testnet.

📰 What you will do

  • Install and set up XDCPay

  • Create a simple web front end

  • Integrate XDCPay with the front end using web3.js

  • Integrate XDCPay with the front end using web3 modal

📰 What you will need

There are a few technical requirements before we start. Please install the following:

As you will use XDCPay to interact with our first dApp on XDC Network, you can download XDCPay at:

🚀 Setting up the development environment

You will be using XDC-dApp-Scaffold to start integrating. Start by cloning the dApp to our working directory:

git clone https://github.com/menezesphill/xdc-dapp-scaffold.git
cd xdc-dapp-scaffold

Once you have cloned the dApp Scaffold, you can install all dependencies. You can either use yarn or npm as a package manager, in this example we used npm:

npm install

When npm finishes installing our dependencies, you can run the start script to see if everything is working:

npm run start

You should see the following React App be served at http://localhost:3000/:

If you see it, you are ready to move on!

⚒ Creating a Web3Modal Provider

Lets start by creating a contexts folder on our project:

mkdir ./src/contexts

The touchpoint where your React App access data on the blockchain is through a Web3Modal Provider that you will use throughout your App. Start by installing the dependencies necessary to create our Web3Modal:

npm install web3modal web3 xdcpay-connect

If you get a compability error while installing these packages, try using the --force command to enforce dependencie resolution:

npm install web3modal web3 xdcpay-connect --force

With everything correctly installed, you can create a Web3ModalProvider.tsx file:

touch ./src/contexts/Web3ModalProvider.tsx

This Web3ModalProvider.tsx will have the following code in it:

import { createContext, useCallback, useEffect, useState } from "react";
import Web3Modal from "web3modal";
import Web3 from "web3";
import { providerOptions } from "xdcpay-connect";

interface IWeb3ModalContext {
  web3: Web3 | null;
  connect: () => void;
  disconnect: () => void;
  account: string | null;
  chainId: number | null;
  networkId: number | null;
  connected: boolean;
}

export const Web3ModalContext = createContext<IWeb3ModalContext>({
  web3: null,
  connect: () => {},
  disconnect: () => {},
  account: null,
  chainId: null,
  networkId: null,
  connected: false,
});

const Web3ModalProvider = ({ children }) => {
  const [web3Modal, setWeb3Modal] = useState<Web3Modal | null>(null);
  const [web3, setWeb3] = useState<Web3 | null>(null);
  const [account, setAccount] = useState<string | null>(null);
  const [chainId, setChainId] = useState<number | null>(null);
  const [networkId, setNetworkId] = useState<number | null>(null);
  const [connected, setConnected] = useState<boolean>(false);

  useEffect(() => {
    const _web3Modal = new Web3Modal({
      cacheProvider: true, // optional
      providerOptions, // required
      disableInjectedProvider: false, // optional. For MetaMask / Brave / Opera.
    });

    setWeb3Modal(_web3Modal);
  }, []);

  const createWeb3 = (provider) => {
    var realProvider;

    if (typeof provider === "string") {
      if (provider.includes("wss")) {
        realProvider = new Web3.providers.WebsocketProvider(provider);
      } else {
        realProvider = new Web3.providers.HttpProvider(provider);
      }
    } else {
      realProvider = provider;
    }

    return new Web3(realProvider);
  };

  const resetWeb3 = useCallback(() => {
    setWeb3(null);
    setAccount(null);
    setChainId(null);
    setNetworkId(null);
    setConnected(false);
  }, []);

  const subscribeProvider = useCallback(
    async (_provider: any, _web3: Web3) => {
      if (!_provider.on) return;

      _provider.on("close", () => {
        resetWeb3();
      });
      _provider.on("accountsChanged", async (accounts: string[]) => {
        setAccount(_web3.utils.toChecksumAddress(accounts[0]));
      });
      _provider.on("chainChanged", async (chainId: number) => {
        console.log("Chain changed: ", chainId);
        const networkId = await _web3.eth.net.getId();
        setChainId(Number(chainId));
        setNetworkId(Number(networkId));
      });

      _provider.on("networkChanged", async (networkId: number) => {
        const chainId = await _web3.eth.getChainId();
        setChainId(Number(chainId));
        setNetworkId(Number(networkId));
      });
    },
    [resetWeb3]
  );

  const connect = useCallback(async () => {
    if (!web3Modal) return;

    const _provider = await web3Modal.connect();
    if (_provider === null) return;

    const _web3 = createWeb3(_provider);
    setWeb3(_web3);

    await subscribeProvider(_provider, _web3);

    const accounts = await _web3.eth.getAccounts();
    const _account = _web3.utils.toChecksumAddress(accounts[0]);
    const _networkId = await _web3.eth.net.getId();
    const _chainId = await _web3.eth.getChainId();

    setAccount(_account);
    setNetworkId(Number(_networkId));
    setChainId(Number(_chainId));
    setConnected(true);
  }, [web3Modal, subscribeProvider]);

  useEffect(() => {
    if (web3Modal && web3Modal.cachedProvider) {
      connect();
    }
  }, [web3Modal, connect]);

  const disconnect = useCallback(async () => {
    if (web3 && web3.currentProvider) {
      const _provider: any = web3.currentProvider;
      if (_provider.close) await _provider.close();
    }
    if (web3Modal) {
      await web3Modal.clearCachedProvider();
    }
    resetWeb3();
  }, [web3Modal, web3, resetWeb3]);

  return (
    <Web3ModalContext.Provider
      value={{
        web3,
        connect,
        disconnect,
        account,
        networkId,
        chainId,
        connected,
      }}
    >
      {children}
    </Web3ModalContext.Provider>
  );
};

export default Web3ModalProvider;

This Provider will provide the following list of features to your React App:

  • A web3 object;

  • A connect method;

  • A disconnect method;

  • An account variable;

  • A networkId variable;

  • A chainId variable;

  • A connected boolean variable;

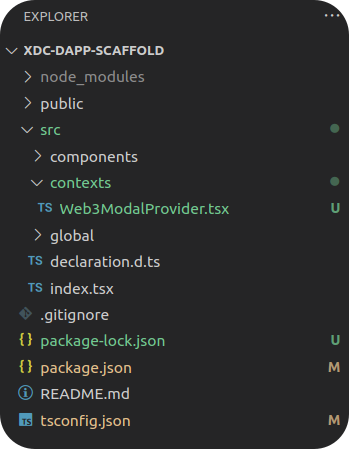

Your folder should look like this:

⚒ Importing Web3Modal Provider to our React App

You will now edit your App.tsx file located at ./src/global/. The file should look like this:

import React from "react";
import Content from "../components/Content";
import Header from "../components/Header";
import styles from "./styles.module.scss";

const App: React.FC = () => {
  return (
      <div className={styles.app}>
        <Header />
        <Content />
      </div>
  );
};

export default App;

You will now import your provider and add that provider to our React Components provider list:

import React from "react";
import Content from "../components/Content";
import Header from "../components/Header";
import styles from "./styles.module.scss";
import Web3ModalProvider from "../contexts/Web3ModalProvider";

const App: React.FC = () => {
  return (
      <div className={styles.app}>
        <Web3ModalProvider>
        <Header />
        <Content />
        </Web3ModalProvider>
      </div>
  );
};

export default App;

⚒ Using Web3Modal Functions

The first thing you will import from your Web3Modal provider are the connect and disconnect methods, and your account variable. By doing this, you can connect to your XDCPay wallet, and show the user what address we are connected to.

Lets move to your ./src/components/Header folder and open the index.tsx file:

import React from "react";
import styles from "./styles.module.scss";

const Header: React.FC = () => {

  function ellipseAddress(
    address: string = "",
    width: number = 4
  ): string {
    return `${address.slice(0, width + 2)}...${address.slice(-width)}`;
  }

  return (
    <nav className={styles.header}>
      <div className={styles.sides}>
        <div className={styles.left}>
        </div>
        <div className={styles.right}>
          <div className={styles.connectButton}><span>NOT CONNECTED</span></div>
        </div>
      </div>
    </nav>
  );
};

export default Header;

Here you will create a Web3ModalContext and use React's useContext to have access to your web3 methods. We also need to implement the connect/disconnect logic on our component and to show whether we are connected or not. Please write the following changes to your index.tsx file:

import React, { useContext, useCallback } from "react";
import styles from "./styles.module.scss";
import { Web3ModalContext } from "../../contexts/Web3ModalProvider";

const Header: React.FC = () => {

  function ellipseAddress(
    address: string | null,
    width: number = 4
  ): string {
    return `${address?.slice(0, width + 2)}...${address?.slice(-width)}`;
  }

  const { account, connect, disconnect } = useContext(Web3ModalContext);

  const handleConnectWallet = useCallback(() => {
    connect();
  }, [connect]);

  const handleDisconnectWallet = useCallback(() => {
    disconnect();
  }, [disconnect]);

  return (
    <nav className={styles.header}>
      <div className={styles.sides}>
        <div className={styles.left}>
        </div>
        <div className={styles.right}>
          <div className={styles.connectButton}>
            <span>
            {!account ? (
              <div className={styles.button} onClick={handleConnectWallet}>
                NOT CONNECTED
              </div>
            ) : (
              <div className={styles.button} onClick={handleDisconnectWallet}>{ellipseAddress(account)}</div>
            )}
            </span>
          </div>
        </div>
      </div>
    </nav>
  );
};

export default Header;

If everything is ok, you should be able to connect your XDCPay wallet to the dApp like in the video:

Screencast from 29-09-2022 16:46:20.webm

⚒ Fetching Blockchain Data using Web3Modal

Now you can show some blockchain data in your dApp. Move to the ./src/components/Content folder and open the index.tsx file. It should look as shown here:

import React, { useState } from "react";
import styles from "./styles.module.scss";

const Content: React.FC = () => {
  const [inputData, setInputData] = useState("");
  const [walletStatus, setWalletStatus] = useState(false);

  function ellipseAddress(
    address: string = "",
    width: number = 4
  ): string {
    return `xdc${address.slice(2, width + 2)}...${address.slice(-width)}`;
  }

  return (
    <section className={styles.content}>
      <div className={styles.container}>
        <div className={styles.interface}>
          <div className={styles.columns} style={{ height: "300px" }}>
              <div className={styles.form}>
                <div className={styles.input}>
                  <div className={styles.title}>
                    <label>My XDC Address:</label>
                  </div>
                  <input
                    type="text"
                    value={inputData}
                  />
                </div>

                <div className={styles.input}>
                  <div className={styles.title}>
                    <label>Connected to:</label>
                  </div>
                  <input
                    type="text"
                    value={inputData}
                  />
                </div>

                <div className={styles.input}>
                  <div className={styles.title}>
                    <label>My XDC Balance:</label>
                  </div>
                  <input
                    type="text"
                    value={inputData}
                  />
                </div>

                <div className={styles.walletStatus}>
                      <div
                        className={styles.ball}
                        style={
                          walletStatus
                            ? { backgroundColor: "lime" }
                            : { backgroundColor: "red" }
                        }
                      />
                      Wallet {walletStatus ? "Connected" : "Disconnected"}
                    </div>
                  </div>
              </div>
            </div>
        </div>
    </section>
  );
};

export default Content;

In this file, you will create the logic to:

  • Get my XDC Address;

  • Get the chain ID I am connected to;

  • Get my XDC Balance;

  • Check if my wallet is currently connected to the dApp or not;

In order to do that, you will have to make the following changes to the code:

import React, { useState, useContext, useEffect } from "react";
import styles from "./styles.module.scss";
import { Web3ModalContext } from "../../contexts/Web3ModalProvider";

const Content: React.FC = () => {
  const [xdcAddress, setXdcAddress] = useState("");
  const [xdcBalance, setXdcBalance] = useState("");
  const [currentChainId, setCurrentChainId] = useState("");
  const [walletStatus, setWalletStatus] = useState(false);

  const { account, chainId, web3 } = useContext(Web3ModalContext);

  const getBalance = async () => {
    if (web3 && account) {
      const balance = await web3.eth.getBalance(account);

      setXdcBalance((Number(balance)/1e18).toString());
    } else {
      setXdcBalance("");
    }
  };

  const getChainId = () => {
    if (web3 && chainId) {
      setCurrentChainId(String(chainId));
    } else {
      setCurrentChainId("");
    }
  };

  const getWalletStatus = () => {
    if (!account) {
      setWalletStatus(false);
    } else {
      setWalletStatus(true);
    }
  };

  const getAddress = () => {
    if (account) {
      setXdcAddress(`xdc${account.slice(2)}`);
    } else {
      setXdcAddress("");
    }
  };

  useEffect(() => {
    getBalance();
    getChainId();
    getWalletStatus();
    getAddress();
  }, [account, chainId, web3]);

  return (
    <section className={styles.content}>
      <div className={styles.container}>
        <div className={styles.interface}>
          <div className={styles.columns} style={{ height: "300px" }}>
              <div className={styles.form}>
                <div className={styles.input}>
                  <div className={styles.title}>
                    <label>My XDC Address:</label>
                  </div>
                  <input
                    type="text"
                    value={xdcAddress}
                  />
                </div>

                <div className={styles.input}>
                  <div className={styles.title}>
                    <label>Connected to:</label>
                  </div>
                  <input
                    type="text"
                    value={currentChainId}
                  />
                </div>

                <div className={styles.input}>
                  <div className={styles.title}>
                    <label>My XDC Balance:</label>
                  </div>
                  <input
                    type="text"
                    value={xdcBalance}
                  />
                </div>

                <div className={styles.walletStatus}>
                      <div
                        className={styles.ball}
                        style={
                          walletStatus
                            ? { backgroundColor: "lime" }
                            : { backgroundColor: "red" }
                        }
                      />
                      Wallet {walletStatus ? "Connected" : "Disconnected"}
                    </div>
                  </div>
              </div>
            </div>
        </div>
    </section>
  );
};

export default Content;

If there are no erros, the next time you connect to XDCPay on the dApp you should see the following:

Screencast from 29-09-2022 17:07:45.webm

Now you have created your first dApp on XDC Network using XDCPay! 🎉🥳


This dApp Scaffold is available in the xdc-dapp-scaffold folder. This Dapp completed version (fully functional) is also available in the xdc-dapp-scaffold-completed folder. For more information about XinFin Network, Please Visit XDC Network Documentation on GitBook.\

Last updated
